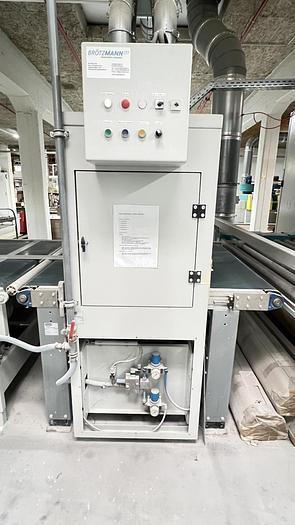

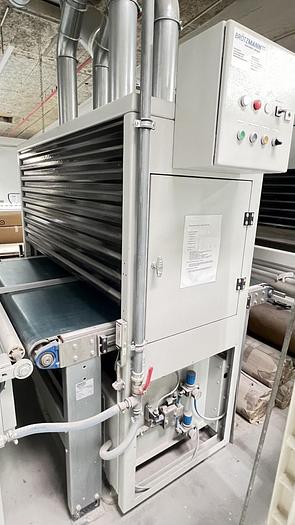

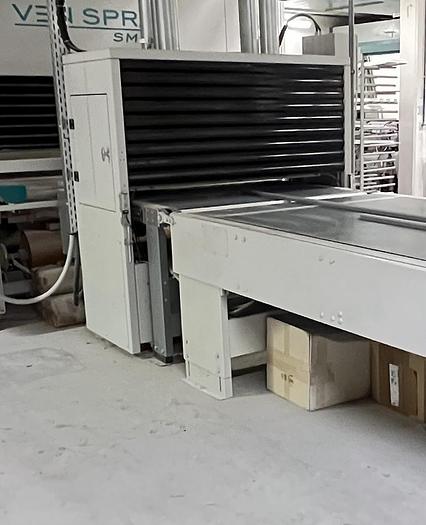

Dedusting machine Venjakob Ven Clean Smart

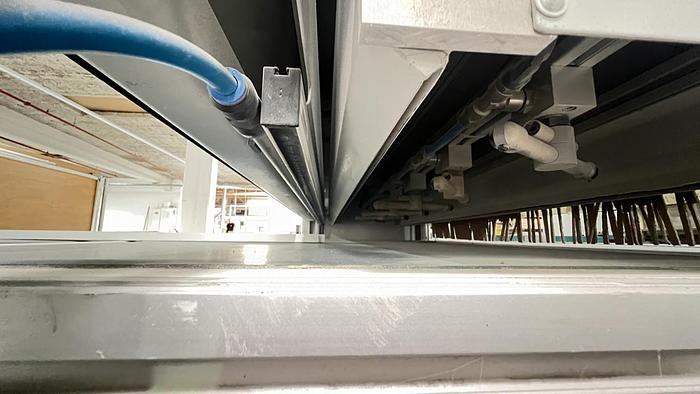

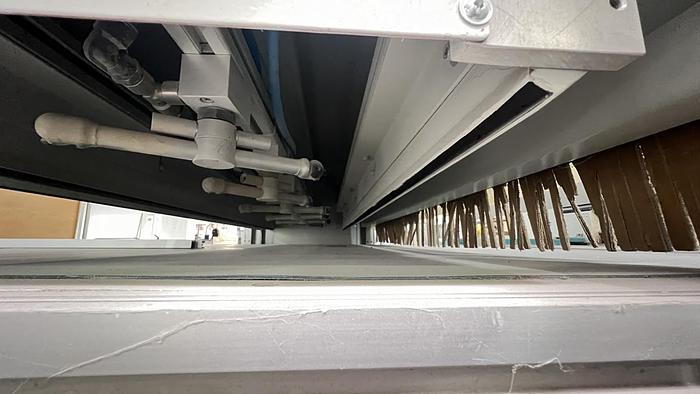

Completely encapsulated compressed air dedusting system for removing dust from workpiece surfaces in a continuous process. Six rotating blowing stars blow the sanding dust from the surface and this is then. This dust is connected to the on-site central dust extraction system by means of dust extraction hoods arranged on both sides. The workpiece is transported via a belt conveyor with a length of 1500 mm. 1 electrical control cabinet integrated in the machine frame. With all necessary switching and safety elements. The control cabinet contains all the necessary contacts for interlocking the machine offered machine as well as machines from other manufacturers. 1 ionizing unit as nozzle bar With compressed air blowing nozzles to eliminate static charges on the workpiece surfaces, including high-voltage power supply unit (not in EX) with voltage indicator and connecting cable between ionizing bar and power supply unit. Technical data: - Manufacturer Venjakob - Type Ven Clean Smart - Year of manufacture 2011 - Total length 1.500 mm - Working width 1.300 mm - Total width 1.800 mm - Drive power 0,50 kW - Exhaust air volume 4.000 m³/h (to be provided by the customer) - Compressed air consumption 980 Nl/min. - The condition used - Country of Origin – Germany
