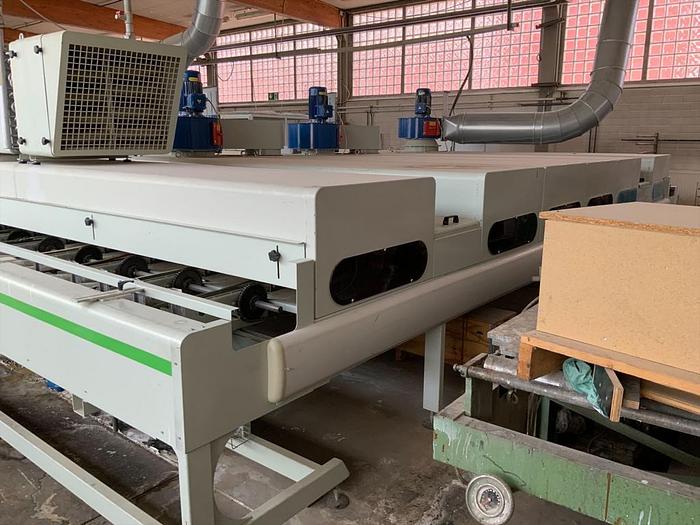

Power dryer Cefla Falconi Fono FT 6500

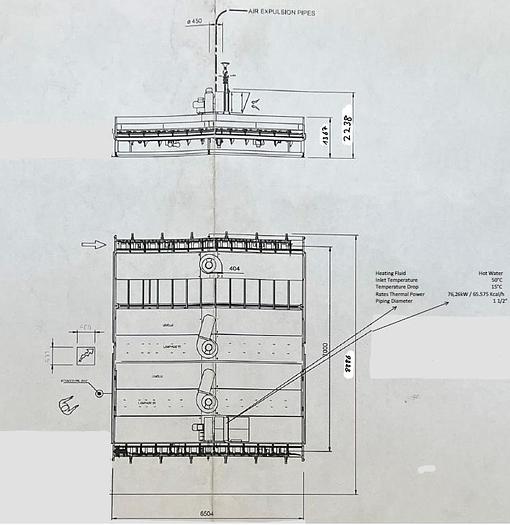

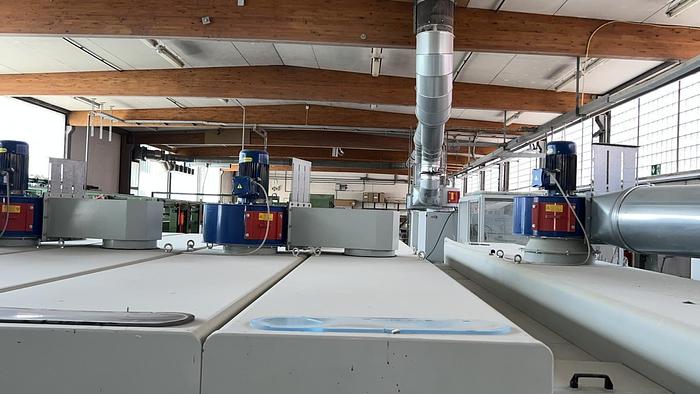

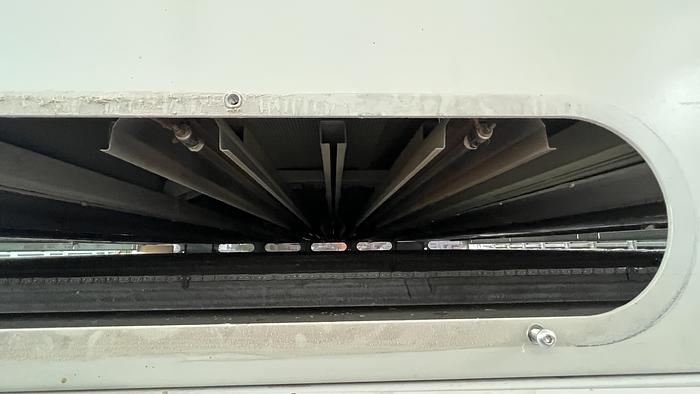

This dryer is suitable for drying lacquered strips. The layouts show examples of how the machine can be integrated into a production line. - Manufacturer Falcioni (Cefla) - Type Forno FT 6500 - Year of construction 2008 - Roll pitch (center - center) approx. 350 mm - Number of rollers per side 23 pcs. - Number of translators per side 12 pcs. - Number of cross transport chains per side 12 pcs. - Min. length of workpieces - approx. 1,200 mm - Max. Length of workpieces - approx. 6,200 mm - Max. Width of workpieces - approx. 220 mm - Max. Max. height of workpieces - approx. 80 mm - Number of controllable temperature zones 1 pc. - Number of air supply units 1 pc. - Heating - hot water, connection 1 1/2 inch - Nominal heat output approx. 64,000 Kcal/h - IR radiators 20 units - IR radiators are switched in 4 groups. - Total electrical output IR radiators 50KW - Distribution of IR radiators, see drawing - Supply air capacity 6,000m3/h - Exhaust air capacity 6,000m3/h - Max. Drying temperature approx. 55 degrees - The heated air is conveyed through all dryer modules 6-1. The air is heated in dryer module 6, then conveyed through dryer modules 5-2 with 2 fans, then discharged from the building in dryer module 1 as 100% exhaust air. from the building. - Feed rate infeed roller transport, transverse, 18-108m/min - Chain conveyor feed, longitudinal, 0.5-3m/min. - Outfeed roller conveyor feed, transverse, 18-108m/min. - Length of dryer approx. 6,500 mm - Width of dryer approx. 7,600 mm - Height of dryer approx. 2,240 mm - Suitable for water-based paints - Suitable for solvent-based paints ATEX - Total electrical connected load 69KW/139.5A - Voltage fluctuations max. +/- 5% - With switch cabinet - Volt, hz 400 / 50
