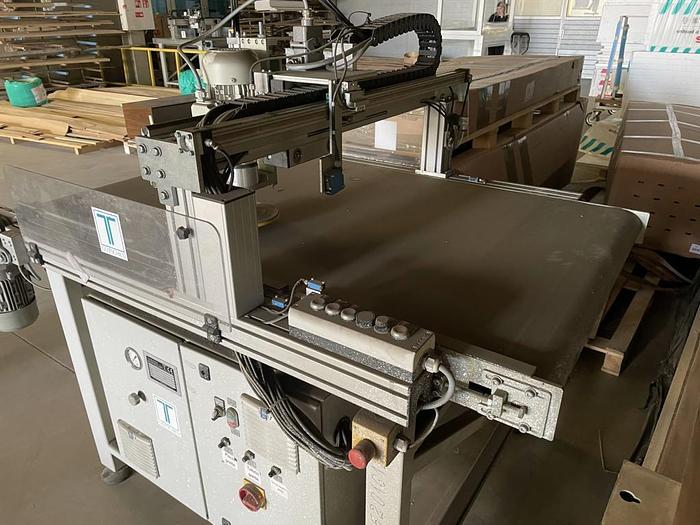

Gottschild HBS 1600-750-100-1 polishing machine (1)

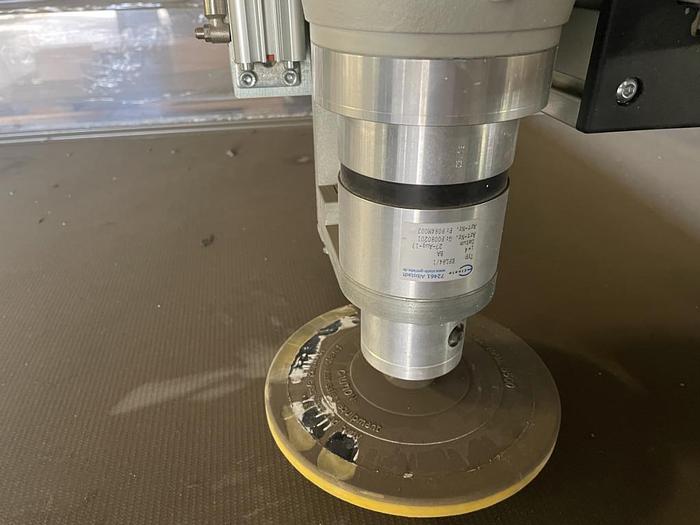

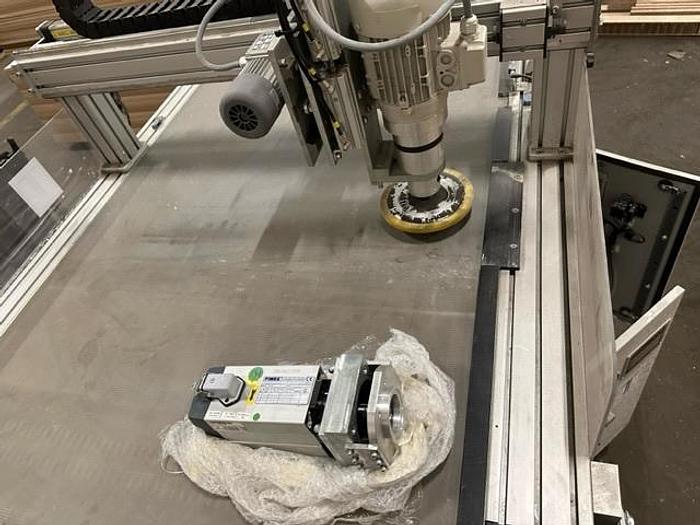

Polishing and sanding machine with a wide range of applications, from polishing high-gloss furniture fronts to sanding sanding and polishing kitchen worktops. - Easy change between polishing and sanding head. - With tool head oscillation for a more even, higher quality sanding or polishing surface. polishing surface. - With automatic part recognition. Technical data: - Type: HBS 1600-750-100-1 - Year of manufacture 2013 - Electrical connection 400V, 50 Hz, 4.5 kW, 10 A - Compressed air 5 bar - Conveyor belt 1,600 mm x 940 mm - only rectangular parts - Part width: 90 mm - 750 mm (without tool bridge 850 mm) - Part length: 150 mm - 2800 mm - Part thickness: 8 mm - 100 mm (extension of the working height to 100 mm) - Frame size 1600 mm x 1200 mm - Frame height approx. 960 mm ± 25 mm - Frame material Welded tubular steel - Support for superstructure aluminum profiles - Manual belt cleaning every 8 hours - Safety devices Emergency stop. The machine must be shielded by protective walls if the machine is supplied without a housing. - Polishing motor 400V, 50 Hz, 0.75 kW with planetary gearbox - Siemens/Vipa S7 PLC control, parameters via 7 segment displays, KEB frequency converter - Control elements Control: ON/OFF, RESET, START/STOP, program interruption, polishing head speed, belt speed and tool head oscillation speed - Tool bridge with polishing head, consisting of a linear profile system, driven by pneumatic linear cylinders. - without sanding pad for random orbital sanding head Location: not in stock
